KCM 3-Jaw Micro Set
Dust Proof Manual Chucks
Steel Body With Two Piece Jaws






Chuck
Diameter		 Chuck
Number		 Average Spindle
weight With
Mtg. Plate
6" 2063DP 24
8" 2083DP 63
12" 2124DP 125
15" 2154DP 260
18" 2184DP 3745
24" 2244DP 675
Chuck

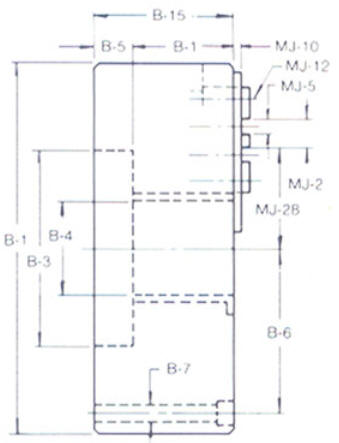

Dia.		 B-1 B-3 B-4 B-5 B-6 B-7 B-15 MJ-2 MJ-5 MJ-10 MJ-12 MJ-28 Number
Of
Cross
Slots
Max. Min.
6" 6.000 3.125 1.280 .688 2.672 .250 2.281 .437 .251 .110 5/16-18 2.156 1.625 2
8" 9.000 4.750 2.200 .750 4.094 .375 2.281 .500 .251 .150 3/8-16 2.328 1.718 3
12" 12.000 7.906 3.000 .812 2.625 .500 4.000 .625 .312 .165 1/2-13 3.187 2.312 4
15" 15.000 11.781 4.281 1.125 3.375 .625 5.750 1.000 .500 .281 3/4-10 3.875 3.375 4
18" 18.000 11.781 4.531 1.125 3.375 .625 5.750 1.000 .500 .281 3/4-10 4.625 3.500 4
24" 24.000 16.031 6.687 1.187 4.625 .750 6.500 1.500 .750 .281 3/4-10 7.125 4.500 4
