Strong Power Chucks

V200 Non Thru-Hole Series - Plain Back

3-jaw Wedge Type Non Through-Hole Power Chucks - Plain Back
SPEC
Model		 Plunger
Stroke
(mm)		 Jaw
Stroke
(In Dia.)
(mm)		 Max.
Pull
Force
(kgf)		 Max.
Gripping
Force
(kgf)		 Max.
Operating
Pressure
(kgf / cm2)		 Max.
Speed
(r.p.m.)		 Weight
(kg)		 Moment
Of Inertia
I
(kg‧m2 )		 Matching
Cylinder		 Matching
Hard Jaw		 Matching
Soft Jaw		 Gripping
O.D. Range
(mm)
V-206 20 9.2 1835 5353 26.5 5200 12 0.045 MS105C HJ06 HC06 Ø18-Ø165
V-208 21 9.7 2549 7648 25.5 4500 23 0.137 MS125C HJ08 HC08 Ø26-Ø210
V-210 25 8.8 2957 11013 28.6 4000 34.5 0.3 MS125C HJ10 HC10 Ø26-Ø254
V-212 30 10.5 4181 15907 27.5 3300 61.3 0.72 MS150C HJ12-1 HC12-1 Ø26-Ø304
V-215 35 16 8362 25391 32.6 3000 101 1.8 MS200C HJ15-1 HC15-1 Ø68-Ø381
V-218 35 16 8362 25391 32.6 1060 116 2.9 MS200C HJ15-1 HC15-1 Ø130-Ø450

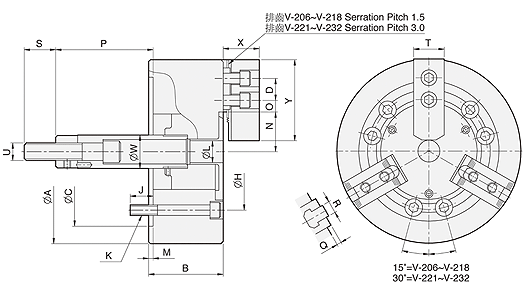

DIM
Model		 A B C
(H6)		 D H J K L M N
max.		 O
max.		 O
min.		 P
max.		 P
min.		 Q R S T U
max.		 W X Y
V-206 165 74 140 20 104.78 14 6-M10x70 21 5 38.7 14.75 7.25 104.6 84.6 4 12 36 31 M16x2.0 34 39 73
V-208 210 85 170 25 133.35 20 6-M12x85 25 5 46.85 22.25 10.25 132 111 5 14 36 35 M20x2.5 38 41 95
V-210 254 89 220 30 171.45 18 6-M16x85 34 5 51.1 30.75 11.25 158 133 5 16 36 40 M20x2.5 45 46 110
V-212 304 106 220 30 171.45 24 6-M16x105 34 6 61 48.75 12.75 163 133 5 18 36 50 M20x2.5 50 54 130
V-215 381 114 300 43 235 29 6-M20x115 - 6 77.5 50.25 23.25 104 69 2 25.5 55 50 M30x3.5 60 63 165
V-218 450 114 300 43 235 29 6-M20x115 - 6 108 50.25 23.25 92 57 2 25.5 55 50 M30x3.5 60 63 165
