Strong Power Chucks

NHT 200 3-2 Jaw Power Chucks - A Type Spindle Mount


SPEC
Model		 Through
-Hole
(mm)		 Plunger
Stroke
(mm)		 Jaw
Stroke
(In Dia.)
(mm)		 Max. Pull Force
(kgf)
3 Jaw / 2 Jaw		 Max. Gripping Force
(kgf)
3 Jaw / 2 Jaw		 Max. Operating
Pressure
(kgf / cm2)
3 Jaw / 2 Jaw		 Max.
Speed
(r.p.m.)		 Weight
(kg)		 Matching
Cylinder		 Matching
Hard Jaw		 Matching
Soft Jaw
NHT-208A5 Ø52 16 7.4 2243 / 1495 5812 / 3875 17.2 / 12.1 3500 25.2 M1552 HJ06 HC08-1
NHT-208A6 Ø52 16 7.4 2243 / 1495 5812 / 3875 17.2 / 12.1 3500 24.7 M1552 HJ06 HC08-1

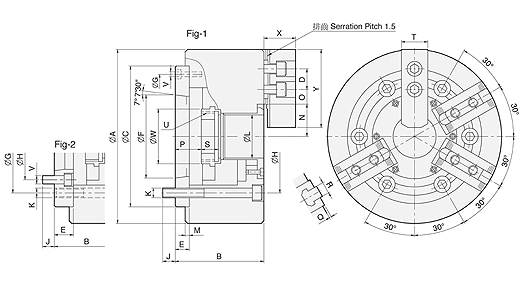

DIM
Model		 A B C
(H6)		 D E F G H J K L M N
max.		 O
max.		 O
min.		 P
max.		 P
min.		 Q R S T U
max.		 V W X Y Referenoe
NHT-208A5 210 113 170 20 23 82.563 133.5 104.78 13 6xM12 52 5 41.8 34 7.5 37.5 21.5 2 12 20.5 32 M60x2 6xM10 66 37 73 Fig-2
NHT-208A6 210 107 170 20 17 106.375 150 133.35 17 6xM12 52 5 41.8 34 7.5 31.5 15.5 2 12 20.5 32 M60x2 3xM6 66 37 73 Fig-1
