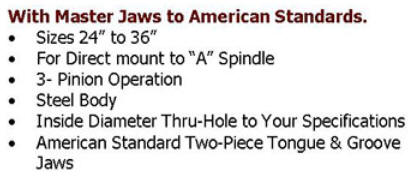

Kalamazoo 3-jaw Self centering Heavy Duty Manual Scroll Chucks

Made in the USA

Chuck

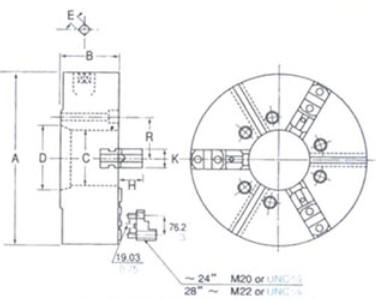

Size		 Part
Number		 Spindle
Size		 B C D H K R WT.
24" 3243R-A11 A2-11 6.580 6.75
(7.25)		 7.750 3.620 2.950 4.625 715
24" 3243R-15 A2-15 6.580 9.49
(10.2)		 11.250 6.620 2.950 6.500 660
24" 3243R-20 A2-20 6.580 10.47
(11.0)		 16.250 3.620 2.950 7.250 615
28" 3283R-A11 A2-11 7.910 6.77
(7.25)		 7.750 3.620 2.950 4.625 1025
28" 3283R-A15 A2-15 7.910 9.49
(10.2)		 11.250 3.620 2.950 6.500 975
28" 3283R-A20 A2-20 7.910 12.52 16.250 3.620 2.950 7.250 902
32" 3323R-A11 A2-11 7.910 6.75
(7.25)		 7.750 3.620 2.950 4.625 1520
32" 3323R-A15 A2-15 7.480 10.47
(10.8)		 11.250 3.620 2.950 6.500 1320
32" 3323R-A20 A2-20 7.480 12.52
(14.5)		 16.250 3.620 2.950 7.250 1282
36" 3363R-A15 A2-15 7.480 10.47
(10.8)		 11.250 3.620 2.950 6.500 1875
36" 3363R-A20 A2-20 7.480 12.52
(14.5)		 16.500 3.620 2.950 9.125 1785
