KCM Micro Set 6-Jaw Self-Centering Scroll Chucks
Steel With Solid One Piece Jaws  (O.D & I. D.)
(Made In The USA)

Size

Model

O.D. Minimum

 O. D. Maximum I. D. Minimum I. D. Maximum Maximum RPM
6" 3665 1.984 5.375 .125 1.843 2500
8" 4865 2.187 7.750 .187 2.718 2200
10" 5106 3.375 10.000 .437 4.812 1900
12" 5127 4.250 11.250 .750 5.375 1300
Dimensional Specifications
Size Model C-1 C-3 C-4 C-5 C-6 C-7 C-15 J-1 J-10
6" 3665 6.000 3.125 1.520 .687 2.672 .281 2.350 2.500 .953
8" 4865 8.250 4.750 2.257 .750 3.750 .406 3.125 3.500 1.344
10" 5106 10.000 6.375 2.810 .800 2.187 .469 3.500 3.625 1.750
12" 5127 12.000 7.906 3.257 .875 2.625 .531 4.000 4.250 1.700



Micro Set Manual Chuck Mounting Plates

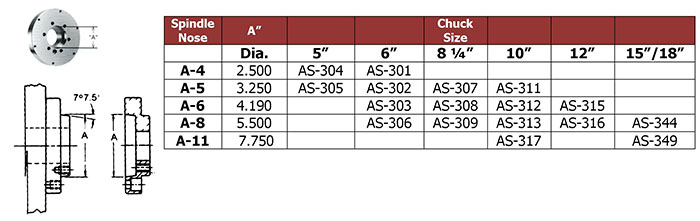

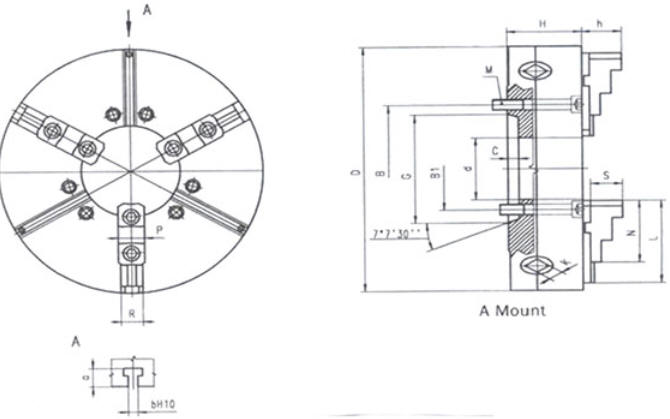

American Standard Flange Nose-Type A

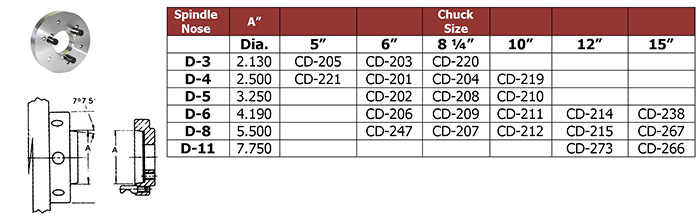

Camlock-Type D

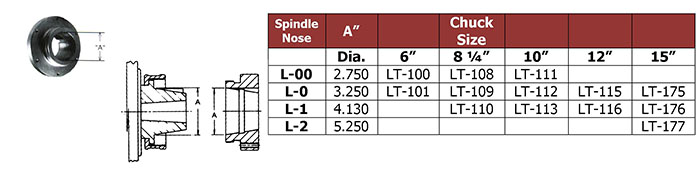

Long Taper Key Drive-Type L

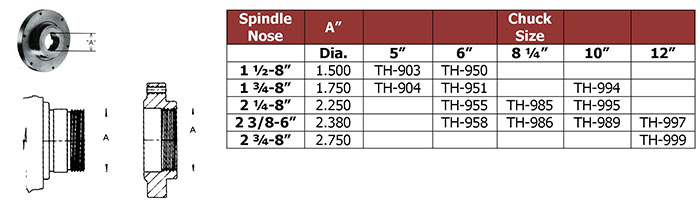

Threaded Mounting Plates

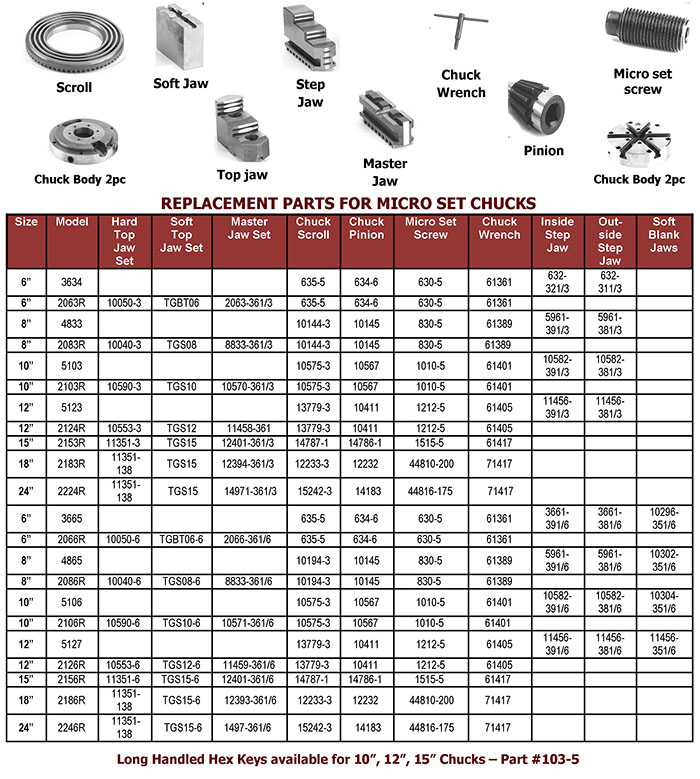

Replacement Parts And Jaws
