KCM Micro Set Three Jaw Self-Centering Scroll Chucks Steel Body Solid One Piece Jaws (O.D. & I. D.) (Made In The USA)

Size	Model	O.D. Minimum	O. D. Maximum	I. D. Minimum	I. D. Maximum	Maximum RPM
4"	3434	1.181	3.543	.079	1.181
5"	3533	1.575	5.118	1.118	1.575
6"	3634	1.984	5.375	.125	1.843	3400
8"	4833	2.140	9.000	.187	2.718	3100
10"	5103	3.375	10.000	.437	4.812	2700
12"	5123	4.250	12.400	.750	5.375	2200

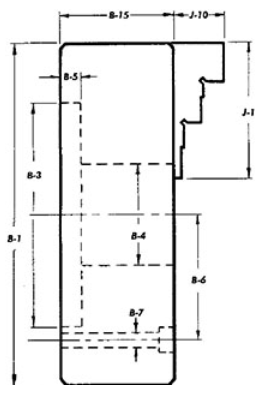

Dimensional Specifications

Size

Model

B-3

B-4

B-5

B-6

B-7

B-15

J-1

J-10

3434

2.125

.866

.656

1.656

.219

2.900

1.500

.800

3533

2.375

1.296

.656

2.219

.281

2.065

1.844

.750

3634

3.125

1.520

.687

2.672

.281

2.350

2.500

.953

4833

4.750

2.257

.750

3.750

.406

3.125

3.500

1.344

10"

5103

6.375

2.810

.800

2.187

.469

3.500

3.625

1.750

12"

5123

7.906

3.257

.875

2.625

.531

4.000

4.250

1.700

Micro Set Manual Chuck Mounting Plates

American Standard Flange Nose-Type A

Camlock-Type D

Long Taper Key Drive-Type L

Threaded Mounting Plates

Replacement Parts And Jaws
