4-Jaw Independen Extra Heavy Duty Oil Country Chucks
With Reversible Top Jaws

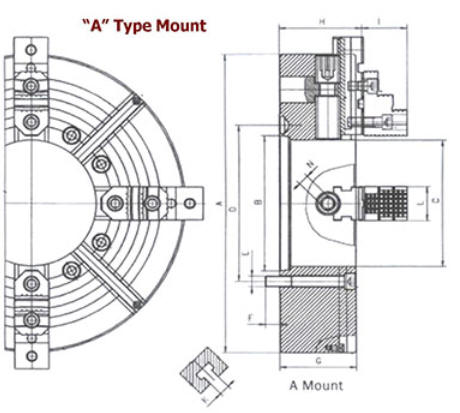

A Mounts and Flat Back Mounts

Steel Bodies - Sizes 24" Through 42" - American Standard Two Piece Jaws

Chuck
Size		 Part
Number		 Spindle
Size		 Hole
Diameter
(inches)		 B D G H I K L N E F RPM
MAX.		 WT.
LBS.
21" 8521A11 A2-11 6.75 7.751 9.250 5.710 6.067 2.981 .866 2.362 .784 3/4-10 1.118 1000 450
21 8521A15 A2-15 10.125 11.251 13000 5.710 6.067 2.981 .866 2.362 .784 7/8-9 1.340 1000 414
24 8525A15 A2-15 10.125 11.251 13.000 6.100 6.579 3.571 .866 2.953 .866 7/8-9 1.340 850 684
24 8525A20 A2-20 15.000 16.251 18.252 6.100 6.579 3.571 .866 2.953 .866 1-8 1.500 850 662
28 8528A15 A2-15 10.125 11.251 13.000 6.100 6.579 3.571 .866 2.953 .866 7/8.9 1.340 750 915
28 8528A20 A2-20 15.000 16.251 18.252 6.100 6.579 3.571 .866 2.953 .866 1-8 1.500 750 873
32 8532A15 A2-15 10.125 11.251 13.000 6.500 6.972 3.571 .866 2.953 .866 7/8-9 1.340 600 1290
32 8532A20 A2-20 15.000 16.251 18.252 6.500 6.972 3.571 .866 2.953 .866 1-8 1.500 600 1246
