4-Jaw Extra Heavy Duty Independent Chucks
With Reversible Top Jaws
A Mounts and Flat Back Mounts

Steel Bodies - Sizes 24" Through 42" - American Standard Two Piece Jaws

Chuck

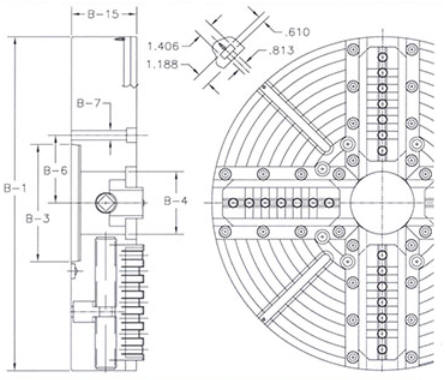

Size		 Spindle
Size		 Part
Number		 B1 B3 B4 B6 B7 B15 WT.
24 A-15 4524RA-15 24 11.250 10.500 6.500 7/8-9 6.250 600
24 A-20 4524RA-20 24 16.250 12.500 9.130 1"-8 6.250 600
24 A-FB 4524FB   10.625 6.299 10.629
28 A-15 4528RA-15 28 11.250 10.500 6.500 7/8-9 6.750 925
28 A-20 4528RA-20 28 16.250 12.750 9.130 1"-8 6.750 975
28 A-FB 4528FB   14.500 7.870 10.629
32 A-15 4532RA-15 32 11.250 10.500 6.500 7/8-9 6.750 1460
32 A-20 4532RA-20 32 16.250 12.750 9.130 1"-8 6.750 1325
32 A-FB 4532FB   14.500 7.840 14.566
36 A-15 4536RA-15 36 11.250 10.500 6.500 7/8-9 6.750 1650
36 A-20 4536RA-20 36 16.250 12.750 9.130 1"-8 6.750 1735
36 A-FB 4536FB   14.500 8.000 14.566
42 A-15 4542RA-15 42 11.250   6.500 7/8-9   2510
42 A-20 4542RA-20 42 16.250 12.750 9.130 1"-8 6.750 2430
42 A-FB 4542FB   14.500 8.000 14.566
