Bison Universal Semi-Steel Scroll Chucks

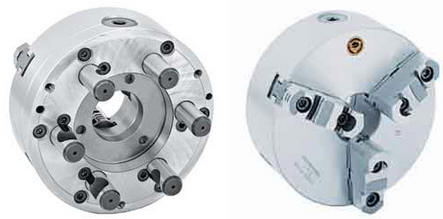

Bison Universal Semi-steel Model 3245
8" 3-JAW Semi-Steel 2 Piece Jaws - D1-6

Item Number: 7-803-1036

3-Jaw (2 Piece) Scroll Chuck Semi-Steel Body Camlock D 10in D1-6 Bison-Bial


Chuck Diameter D in 10

Mount   D1-6
Maximum Speed RPM 2000
Weight lb 71
Hole Diameter d in 2.9921
B in 5.2520
G in 4.1880
C in .6299
H in 4.0748
h in 2.087
Camlock Stud, Diameter   7/8
Thread   M16 x 1.5
Qty   6
Clamping Range d1 (min-max)   .197 - 4.65
Clamping Range d2 (min-max)   3.39 - 7.76
Clamping Range d3 (min-max)   6.30 - 9.84
Clamping Range d4 (min-max)   2.28 - 6.50
Clamping Range d5 (min-max)   4.92 - 9.25
Bison Model Number   3245
2012 Mega Catalog Page 422
