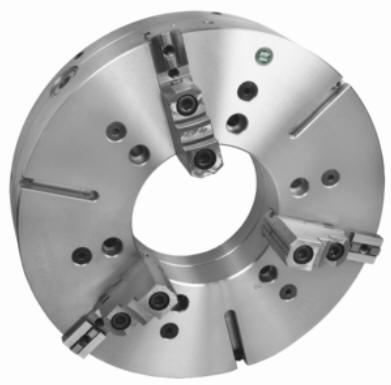

PB SERIES 3-JAW SEMI-STEEL BODY
WITH FINE ADJUSTMENT

1-151-2000: PB Series

Model: 1-151-2000

Line Drawing

Chuck Dia	20.000000
Hole Dia (d)	7.4800
RPM max	700
Model	PB3-20"A
A	16.032
A1	16.022
C	1.18
d1 min	0.79
d1 max	9.25
d2 min	4.33
d2 max	15.75
d3 min	7.48
d3 max	19.69
d4 min	16.14
d4 max	4.72
d5 min	7.87
d5 max	19.09
F	9.2520
H	5.6690
h	3.1100
Mounting Bolts M & T (thread)	3/4 x 10
Mounting Bolts M & T (qty.)	6
Fine Adjustment Screws N (thread)	M18 X 1.5

PB Series - Adjustable Semi-Steel

3 Jaw Adjustable Scroll Chucks
0.0004" T.I.R. with Fine Adjustment
Repeatability 0.0006"
Semi-Steel Body
3 Pinion Design
3-Jaw Scroll Chucks with Two-Piece Hard Reversible Jaws
Each chuck is provided with:
1 set of hard master jaws
1 set of hard top reversible jaws
1 set of mounting bolts
1 set of fine adjustment screws
1 chuck wrench
2 hex key
Eye bolts(10" and larger)
