Bison 10.8" Low Profile 3-Jaw Flange Mount Scroll chuck
7-640-1030

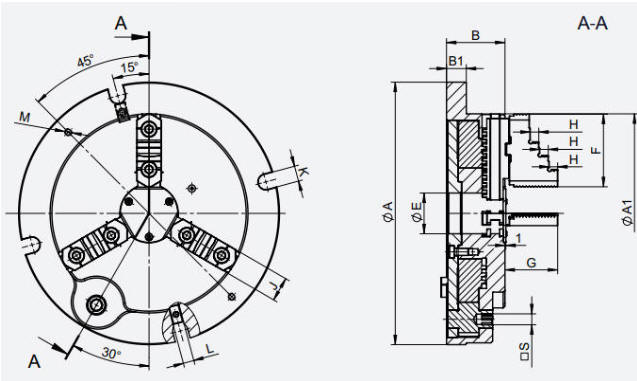

Model Number 9416

A
DIA.

A1
DIA.

E
DIA.

N x J

WT.(kg)

13.7"

10.8"

2.87"

.866"

2.24"

3.74"

2.503"

.472"

1.279"

787"

.708"

.551"

37.8

A milling fixture in the form of a scroll lathe chuck with 2 piece jaws, integrated with the base.
Depending on the adaption, it can be used on milling machine tables, t-towers, drill tables, or surface grinders.
It has a mechanism drive from the front of the fixture, you can use a standard wrench with a spring or a ratchet knob with a cap.
The fixture is sealed against chips, the center by a cover, and the guides by extra teeth on the jaw.
It has two locating keys and 4 recesses for fastening screws to be fixed to the table/tower/pallet. It is possible to attach it by the flange of the fixture with toe clamps to the machine table.
The fixture is low profile, which is and advantage for machine tools with a short z-axis travel, because it does not limit the machine's movements like a chuck with a base.
When the profile is as low as possible, standard 3200 soft jaw blanks can be used and shaped accordingly.
